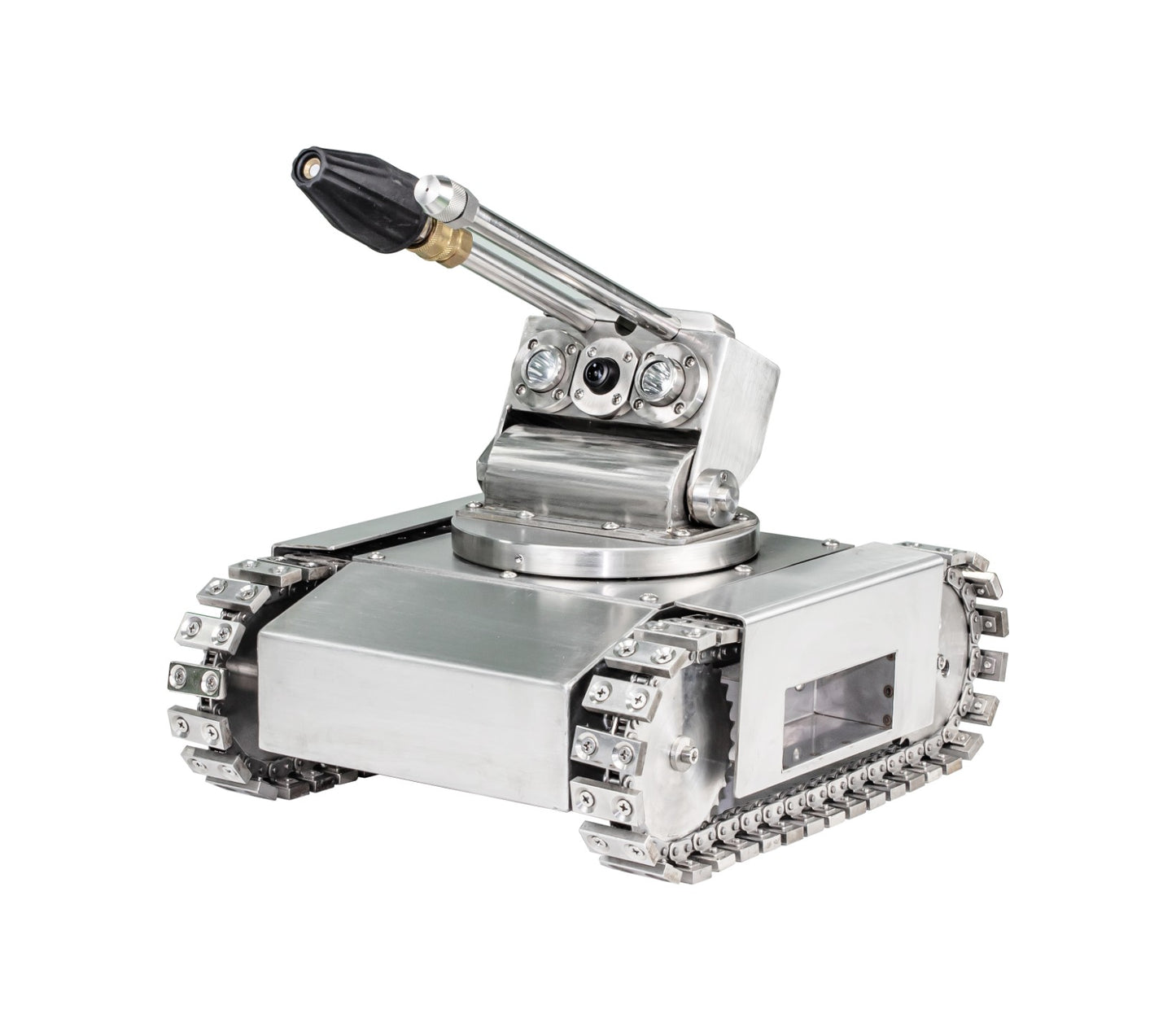

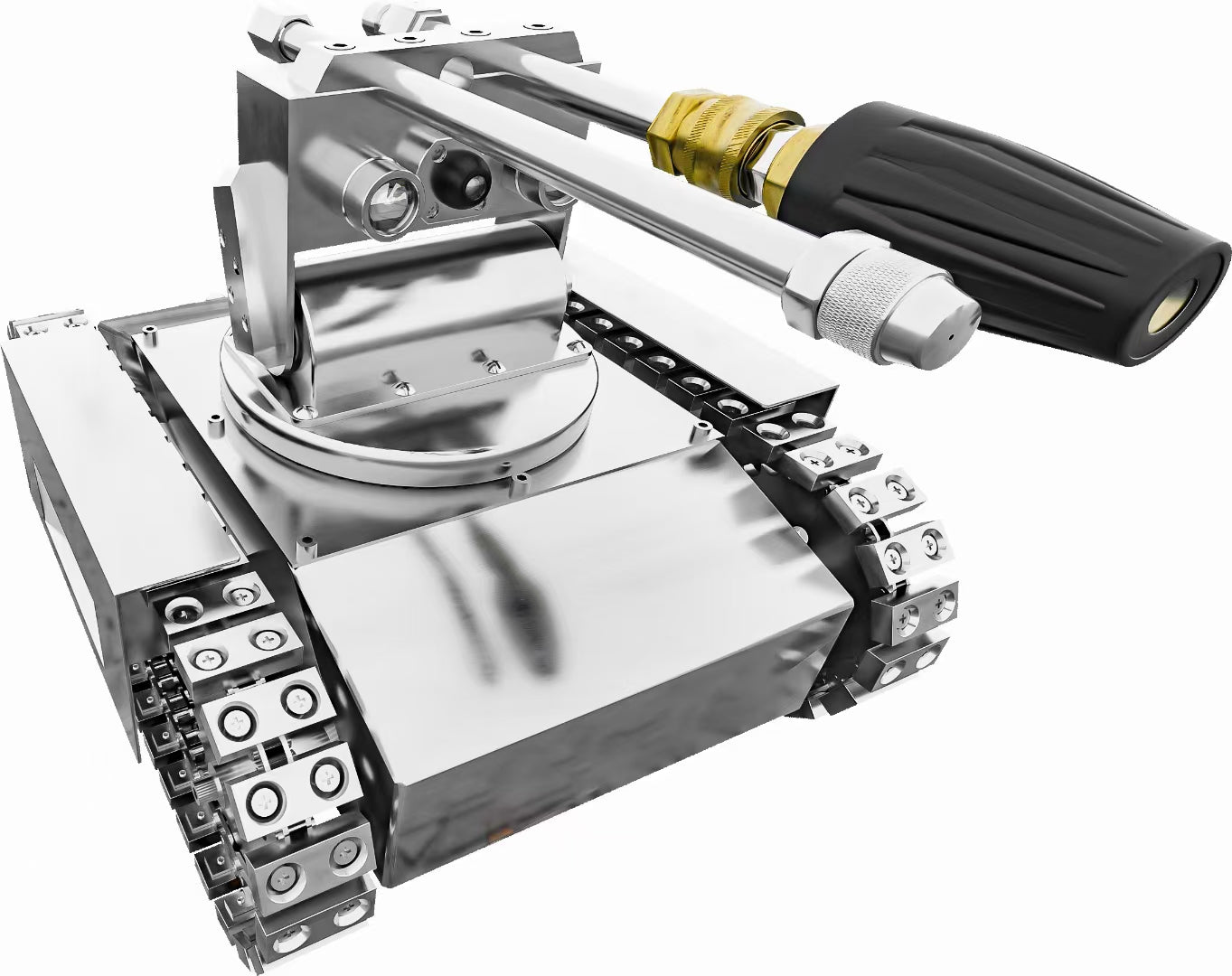

• E200 large-diameter industrial duct cleaning robot — heavy-duty tracked crawler for ducts up to 1500mm | Gaolijie
  • E200 duct cleaning robot front perspective — multi-camera system with front rear and overhead views | Gaolijie
  • E200 industrial pipeline cleaning robot side angle — reinforced tracked frame for 35-degree climbing | Gaolijie
  • E200 robot rear view with cable connection — 50-meter working distance for large trunk line cleaning | Gaolijie
  • E200 industrial duct cleaning robot main unit front — heavy-gauge steel chassis with track drive system | Gaolijie
  • E200 camera module detail — high-resolution inspection camera with LED illumination ring | Gaolijie
  • E200 robot top-down view showing mounting points and accessory attachment rail system | Gaolijie
  • E200 duct cleaning robot three-quarter angle — compact profile for navigating rectangular industrial ductwork | Gaolijie
  • E200 tracked crawler base detail — all-terrain rubber tracks with aggressive tread pattern for duct surfaces | Gaolijie

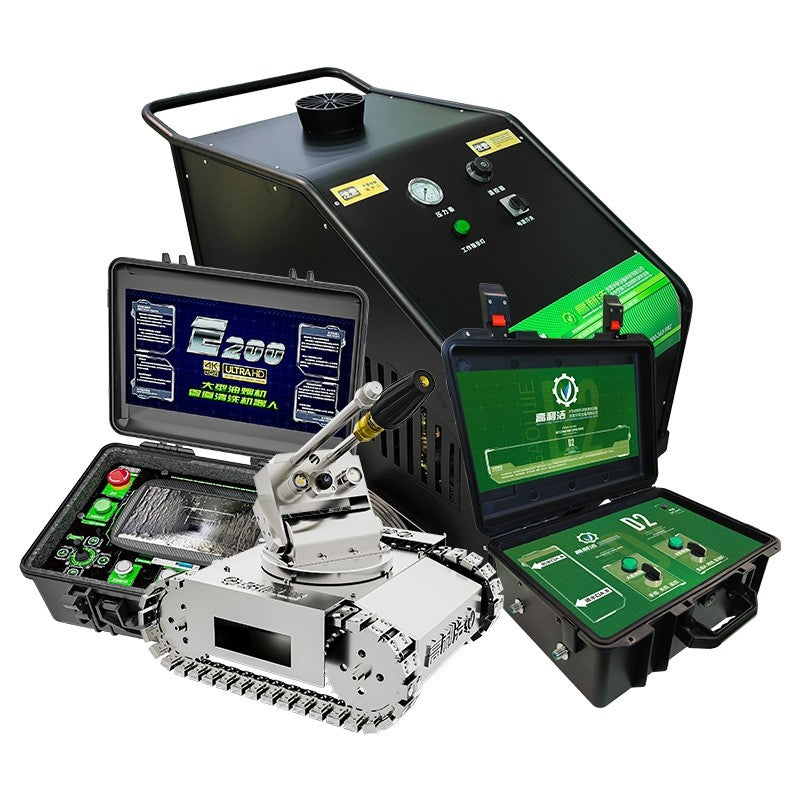

  • E200 industrial robot with control console and cable drum — complete system ready for deployment | Gaolijie
  • E200 heavy-duty industrial pipeline robot overhead view — compact design for large-diameter duct inspection and cleaning | Gaolijie
  • E200 industrial duct cleaning crawler front angle — high-torque 4WD drive with aggressive tread for steep duct climbs | Gaolijie
  • E200 pipeline inspection robot side profile — 304 stainless steel body with IP67 waterproof protection rating | Gaolijie
1 13

GAOLIJIE

E200 Duct Cleaning Robot

E200 Duct Cleaning Robot

Request Factory Quote Chat on WhatsApp

24-hour response — factory-direct pricing

Get Quote

Quick Quote Request

Fill in your details and we'll get back to you within 24 hours with pricing and recommendations.

Factory Tested
1-Year Warranty
48hr Spare Parts
Free Training

Gaolijie E200 Duct Cleaning Robot

The Gaolijie E200 is a duct cleaning robot for large-diameter commercial and industrial ductwork. It is designed for main trunk lines and large air handling systems with duct diameters up to 1,500 mm.

Technical Specifications

Specification E200
Duct Diameter Range 400–1,500 mm
Maximum Working Distance 50 m (extendable)
Camera System Multi-camera with front, rear, and overhead views
Drive System Tracked crawler, reinforced frame
Climbing Angle Up to 35°
Power Supply Configurable: 110V, 220V, 380V, 480V

Application

The E200 is used for cleaning large-diameter ducts in commercial and industrial facilities — including main air handling ducts, process ventilation, and large HVAC trunk lines. It handles duct diameters beyond the range of standard commercial robots.

Frequently Asked Questions

Q: What's the difference between the E200 and K7S?
A: The K7S is designed for standard commercial ducts (200–800 mm). The E200 is a larger platform for industrial ducts up to 1,500 mm. The right choice depends on the duct sizes in your projects.

Q: What power configurations are available?
A: 110V/60Hz (North America), 220V/50Hz (Europe/Middle East/Asia), 380V/50Hz (European industrial), 480V/60Hz (North American industrial). Specify your requirement when ordering.

Q: Is this suitable for hazardous environments?
A: The standard E200 is not explosion-proof rated. For classified hazardous locations, contact Gaolijie about custom configurations with appropriately rated components.

Contact our engineering team for the complete datasheet, application-specific recommendations, and a factory-direct quotation.

Shipping & Delivery

Global shipping to 50+ countries via express, air, and sea freight. Every order packed in reinforced fumigated wooden crates with moisture barrier protection. Processing: 1-3 business days. Transit: 3-14 days depending on destination and method.

Warranty & Lifetime Support

1-Year Comprehensive Warranty on all machines. Spare parts ship within 48 hours from factory inventory. Free lifetime technical support — video training and maintenance docs included with every purchase.

Frequently Asked Questions

Is this machine right for my application?

Our robots handle duct diameters from 120mm to 1000mm, covering commercial kitchen exhaust, HVAC, and industrial pipeline cleaning. Contact us with your project specs for a tailored recommendation.

What comes in the package?

Robot body, control box, 20m cable, remote controller, HD camera system, LED lighting, tool kit, user manual, and warranty card.

Do you offer training?

Yes. Video training and documentation included. Video training and technical support included with every purchase.

How fast can I get spare parts?

Parts ship from factory inventory within 48 hours. Express delivery available for urgent needs.

View full details

📋 Related Guides & Resources

Technical Specifications

Detailed technical specifications are available upon request. Contact our team for the current datasheet and application guidance.

Request Specifications

Application Scenarios

  • Commercial Kitchen Exhaust

    Heavy grease and oil fume duct cleaning for restaurant chains, hotel kitchens, and food processing facilities. Removes built-up deposits that pose fire hazards.

  • HVAC & Central AC Ducts

    Large-building air conditioning duct inspection and cleaning. Navigates long horizontal and vertical runs with full camera documentation.

  • Industrial Pipelines

    Factory ventilation, dust collection, and process piping systems. Handles heavy debris, metal dust, and chemical residues in demanding environments.

  • Preventive Maintenance

    Scheduled inspection and cleaning programs for facility management companies. Full video documentation for compliance and insurance requirements.

Product Resources

📄
Product Catalog (PDF) Complete product lineup with specifications
📋
Technical Datasheet Detailed dimensions, electrical specs, and performance data
📘
User Manual Operation guide, maintenance schedule, and troubleshooting

Contact us for these documents — we'll send them with your quote.
